Filtre mecanice industriale

Avand in vedere ca  aceasta categorie de “filtre mecanice industriale” se adreseaza strict profesionistilor in domeniu, am considerat ca o traducere a a materialului ar fi poate inoportuna. In aceeasi idee, daca sunteti interesati si de alte modele ce nu sunt aici va invitam sa ne contactati.





SERIA  NW













Modele & preturi


View the embedded image gallery online at:
http://www.secreteleapei.ro/filtre-mecanice-industriale#sigProGalleria15e52c90cd

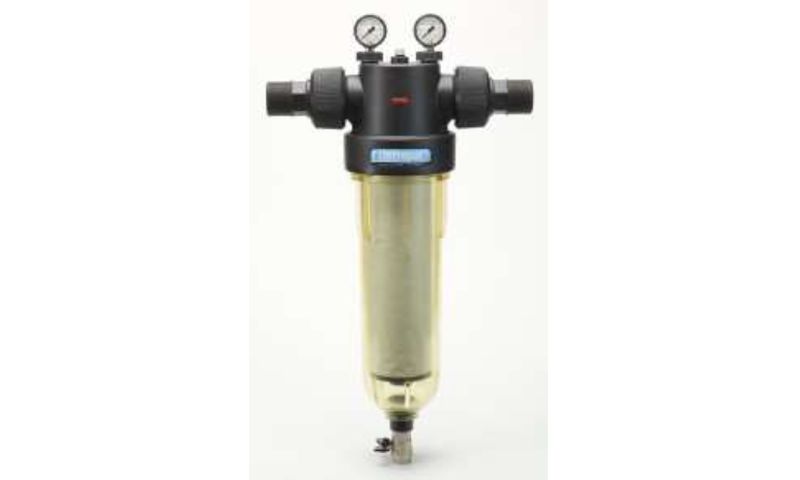

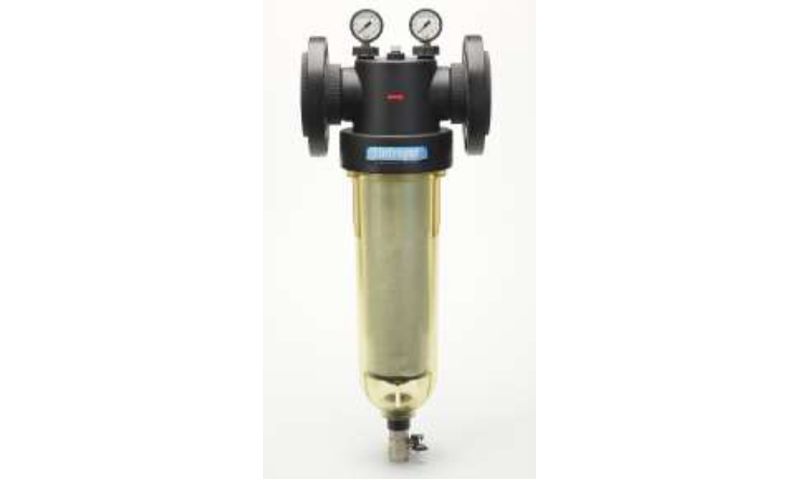

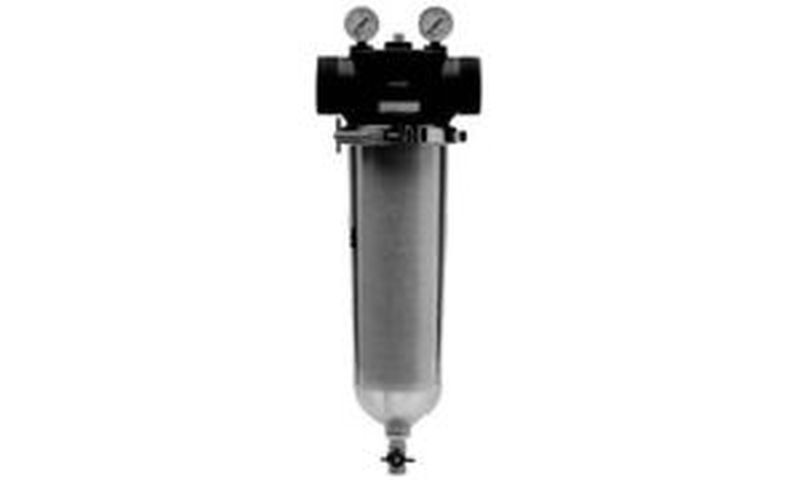

                   NW-FB408                                  NW-FB409

                                                                       NW-FB410

Part

number

Products

Con.

Flow

Pressure /

Temp.

Size (LxH)

Price

in

$

NW-FB408

Industrial filter with thread connection, cleaner tap, 2pcs pressure-gauge, 25μm washable cartridge

2”

20m3/h

16bar / 50ºC

240 x 693 mm

512,46

NW-FB409

Industrial filter with flange connection, cleaner tap, 2pcs pressure-gauge, 25μm washable cartridge

2 1/2”

25m3/h

16bar / 50ºC

240 x 693 mm

571,83

NW-FB410

Industrial filter with flange connection, cleaner tap, 2pcs pressure-gauge, 25μm washable cartridge

3”

30m3/h

16bar / 50ºC

240 x 693 mm

651,12

NW-FB408A

Automatic (time controlled) backwash industrial filter with thread connection, cleaner tap, 2pcs pressure-gauge, 25μm washable cartridge

2”

20m3/h

16bar / 50ºC

240 x 693 mm

938,32

NW-FB409A

Automatic (time controlled) backwash filter with flange connection, cleaner tap, 2pcs pressuregauge, 25μm washable cartridge

2 1/2”

25m3/h

16bar / 50ºC

240 x 693 mm

1002,15

NW-FB410A

Automatic (time controlled) backwash industrial filter with flange connection, cleaner tap, 2pcs

pressure-gauge, 25μm washable cartridge

3”

30m3/h

16bar / 50ºC

240 x 693 mm

1086,72

NW-FB

Reserve filter cartridge 5pcs/bag Choosable pole size (25μm or 100μm)





16bar / 50ºC

240 x 693 mm

37,07

Pentru dimensiuni mai mari contactati firma !

Preturile sunt in $ fara TVA .

Pretul in lei va fi calculat dupa cursul valutar al BNR la data facturarii.

Transportul nu este cuprins in pret dar poate fi negociat, la fel ca si o posibila reducere a pretului,  functie de cantitatea si valoarea produselor achizitionate.



SERIA  DF



Modele & preturi

View the embedded image gallery online at:
http://www.secreteleapei.ro/filtre-mecanice-industriale#sigProGalleria86fbb83727

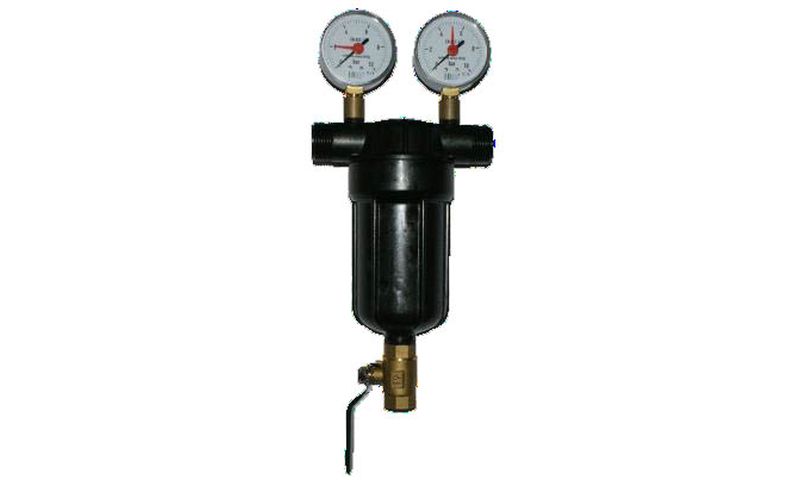

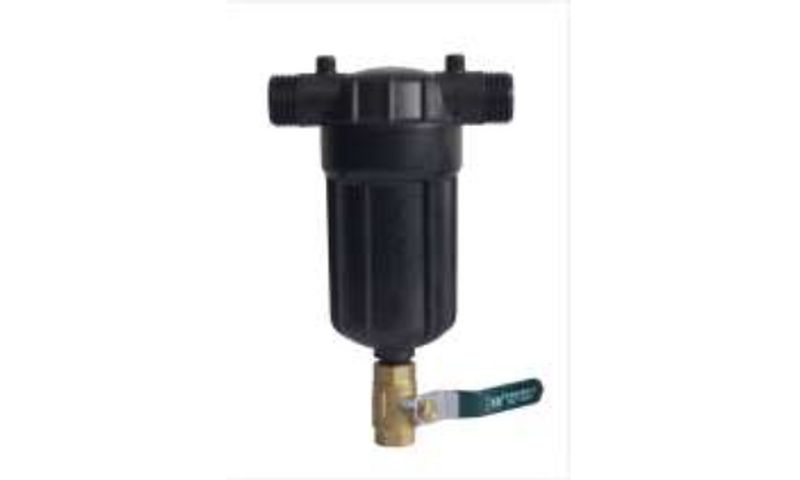

                      DF-100                                   DF-150                            DF-100 +MM-SET-T

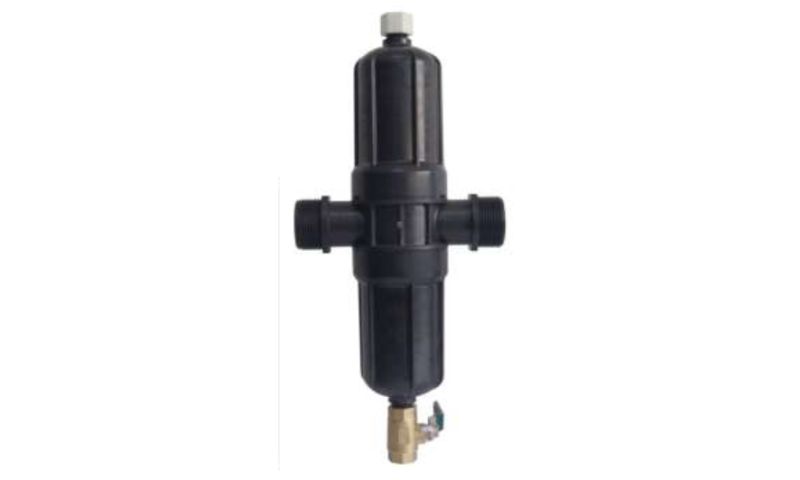

                    DF-200                                   DF-250

Part

number

Products

Con.

Length

mm

Temp

Cº

Pres.

bar

Power

m3/h

Price

in Euro

DF-100

Easy cleaning disc filter with black body and

cleaner tap, 100µm filter cartridges.

1”

150

4-50

10

6

37,50

DF-150

Easy cleaning disc filter with black body and

cleaner tap, 100µm filter cartridges.

6/4”

188

4-50

10

12

92,30

DF-200

Easy cleaning disc filter with black body and

cleaner tap, 100µm filter cartridges.

2”

212

4-50

10

20

281,27

DF-250

Easy cleaning disc filter with black body and

cleaner tap, 100µm filter cartridges.

2,5”

300

4-50

10

40

408,69

DF-100A

Disc automatic (time controlled) backwash filter with

black body and cleaner tap, 100µm filter cartridges

1”

150

4-50

10

6

519,59

DF-150A

Disc automatic (time controlled) backwash filter with

black body and cleaner tap, 100µm filter cartridges

6/4”

188

4-50

10

12

546,03

DF-200A

Disc automatic (time controlled) backwash filter with

black body and cleaner tap, 100µm filter cartridges

2”

212

4-50

10

20

684,60

DF-250A

Disc automatic (time controlled) backwash filter with

black body and cleaner tap, 100µm filter cartridges

2,5”

300

4-50

10

40

837,99

MM-

SET-T

Manometer set for disc filter DF-100, DF-200

2 pcs of MM-50/10 (0-10bar) bottom connection











17,34

MM-

SET-F

Manometer set for disc filter DF-100, DF-200

2 pcs of MM-50/10 (0-10bar) back connection











17,34

Preturile sunt in $ fara TVA .

Pretul in lei va fi calculat dupa cursul valutar al BNR la data facturarii.

Transportul nu este cuprins in pret dar poate fi negociat, la fel ca si o posibila reducere a pretului,  functie de cantitatea si valoarea produselor achizitionate.

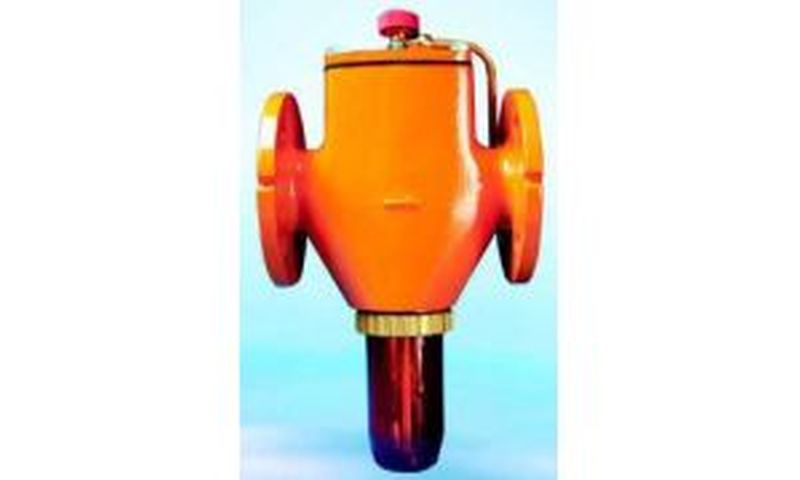

SERIA  FR

















Modele & preturi



Part

number

Products

Con.

Length

mm

Temp.

Cº

Pres.

bar

Power

m3/h

Price

in $

FR-50

Industrial flange type filter with cleaner tap and 95μm

filter cartridges according to DIN 1988, DVGW 503

DN50

242

4-40

10

16,5

674,28

FR-65

Industrial flange type filter with cleaner tap and 95μm

filter cartridges according to DIN 1988, DVGW 503

DN65

242

4-40

10

19

755,04

FR-80

Industrial flange type filter with cleaner tap and 95μm

filter cartridges according to DIN 1988, DVGW 503

DN80

310

4-40

10

37

844,98

FR-100

Industrial flange type filter with cleaner tap and 95μm

filter cartridges according to DIN 1988, DVGW 503

DN100

310

4-40

10

50

946,02

FR-50A

Automatic (time controlled) backwash industrial flange

type filter with cleaner tap and 95μm filter

DN50

242

4-40

10

16,5

1065,65

FR-65A

Automatic (time controlled) backwash industrial flange

type filter with cleaner tap and 95μm filter

DN65

242

4-40

10

19

1146,41

FR-80A

Automatic (time controlled) backwash industrial flange

type filter with cleaner tap and 95μm filter

DN80

310

4-40

10

37

1236,35

FR-100A

Automatic (time controlled) backwash industrial flange

type filter with cleaner tap and 95μm filter

DN100

310

4-40

10

50

1337,39

FR-50H

Hot water industrial flange type filter with cleaner tap

and 95μm filter cartridges, DIN 1988, DVGW 503

DN50

242

4-90

10

16,5

759,47

FR-65H

Hot water industrial flange type filter with cleaner tap

and 95μm filter cartridges, DIN 1988, DVGW 503

DN65

242

4-90

10

19

812,69

FR-80H

Hot water industrial flange type filter with cleaner tap

and 95μm filter cartridges, DIN 1988, DVGW 503

DN80

310

4-90

10

37

902,00

FR-100H

Hot water industrial flange type filter with cleaner tap

and 95μm filter cartridges, DIN 1988, DVGW 503

DN100

310

4-90

10

50

1003,02

FC-FR-50

Spare parts 95μm filter cartridge

for FR-50, FR-65, FR-50A, FR-65A, FR-50H, FR-65H



242

4-90

10

19

50,04

FC-FR-80

Spare parts 95μm filter cartridge

for FR-80, FR-100, FR-80A, FR-100A, FR-80H, FR-100H



242

4-90

10

50

70,31

Pentru dimensiuni mai mari contactati firma !

Nota: pozitiile cu fundal rosu arata ca sunt si pentru apa calda !

Preturile sunt in euro fara TVA .

Pretul in lei va fi calculat dupa cursul valutar al BNR la data facturarii.

Transportul nu este cuprins in pret dar poate fi negociat, la fel ca si o posibila reducere a pretului,  functie de cantitatea si valoarea produselor achizitionate.

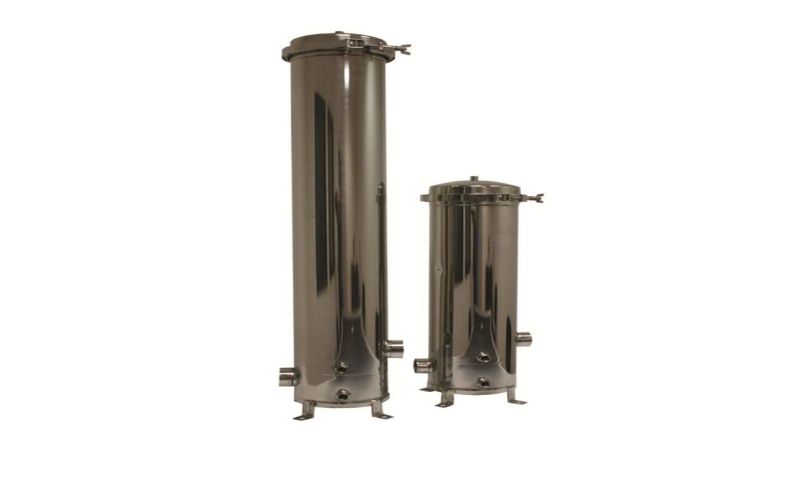

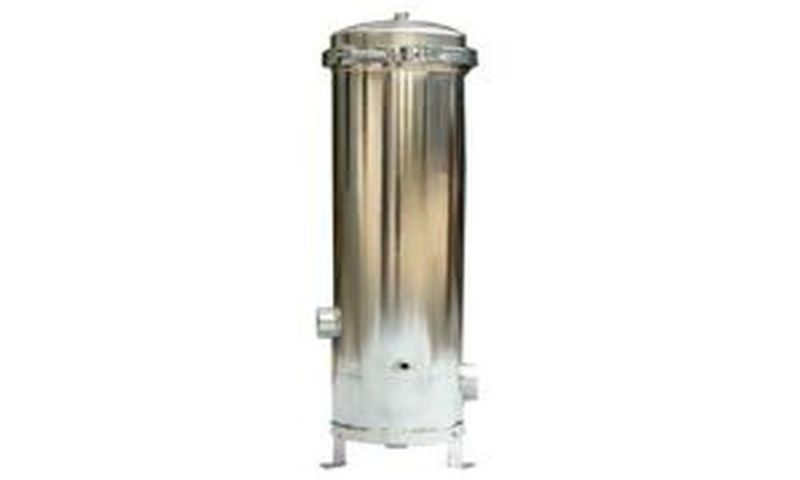

BlueClear FH
















Modele & preturi



View the embedded image gallery online at:
http://www.secreteleapei.ro/filtre-mecanice-industriale#sigProGalleriad8e67beeab

Part number

Products

In/out

connection

Flow

m3/h

Pressure /

Temp.

Size (LxH)

mm

Price

in

$

BlueClear FH-4020SS

High capacity stainless steel filter for 5pcs

2.5”x40” PP filter cartridge

2”

20

6,8bar /

93ºC

Ø215 x 1365

530,15

BlueClear FH-2020SS

High capacity stainless steel filter for 5pcs

2.5”x40” PP filter cartridge

6/4”

10

6,8bar /

93ºC

Ø215 x 860

396,00

Pentru dimensiuni mai mari contactati firma !

Nota: pozitiile cu fundal rosu arata ca sunt si pentru apa calda !

Preturile sunt in $ fara TVA .

Pretul in lei va fi calculat dupa cursul valutar al BNR la data facturarii.

Transportul nu este cuprins in pret dar poate fi negociat, la fel ca si o posibila reducere a pretului,  functie de cantitatea si valoarea produselor achizitionate.

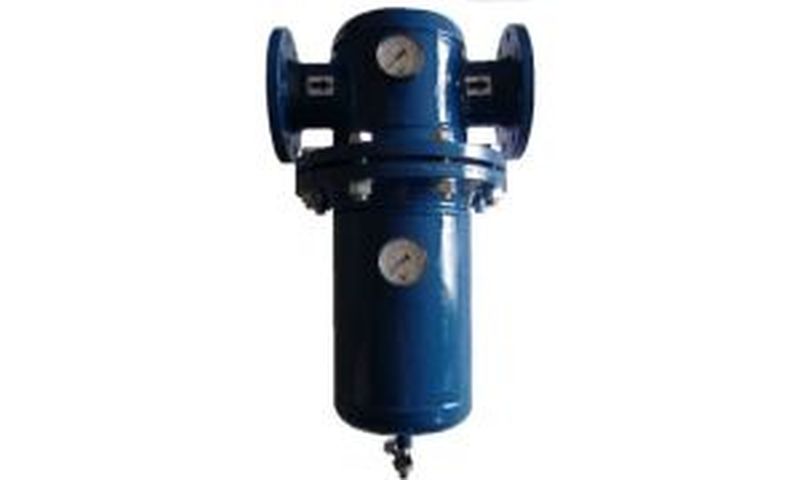

SERIA  IWF



Modele & preturi



Part

number

Products

Con.

Flow

m3/h

Pres.

Price

in

$

IWF-80M

Industrial flange type filter with1/2”cleaner tap and washable 100μm

stainless steel cartridges with 2pcs manometer

DN80

36

10 bar

1412,91

IWF-100M

Industrial flange type filter with1/2”cleaner tap and washable 100μm

stainless steel cartridges with 2pcs manometer

DN100

85

10 bar

2110,64

IWF-125M

Industrial flange type filter with1/2”cleaner tap and washable 100μm

stainless steel cartridges with 2pcs manometer

DN125

100

10 bar

3104,90

IWF-150M

Industrial flange type filter with1/2”cleaner tap and washable 100μm

stainless steel cartridges with 2pcs manometer

DN150

130

10 bar

3279,33

IWF-200M

Industrial flange type filter with1/2”cleaner tap and washable 100μm

stainless steel cartridges with 2pcs manometer

DN200

170

10 bar

4186,38

IWF-80A

Automatic (time controlled) backwash industrial flange type filter with

cleaner tap and 100μm stainless steel cartridges with 2pcs manometer

DN80

36

10 bar

1675,17

IWF-100A

Automatic (time controlled) backwash industrial flange type filter with

cleaner tap and 100μm stainless steel cartridges with 2pcs manometer

DN100

85

10 bar

2413,94

IWF-125A

Automatic (time controlled) backwash industrial flange type filter with

cleaner tap and 100μm stainless steel cartridges with 2pcs manometer

DN125

100

10 bar

3466,68

IWF-150A

Automatic (time controlled) backwash industrial flange type filter with

cleaner tap and 100μm stainless steel cartridges with 2pcs manometer

DN150

130

10 bar

3651,38

IWF-200A

Automatic (time controlled) backwash industrial flange type filter with

cleaner tap and 100μm stainless steel cartridges with 2pcs manometer

DN200

170

10 bar

4611,78

Pentru dimensiuni mai mari contactati firma !

Continuare tabel



Part number

LxWxH  (mm)

Cartridges  (mm)

Temp.



IWF-80

300x250x705

1pc d90x400

4-93 Cº



IWF-100

400x345x765

2pcs d90x400

4-93 Cº



IWF-125

450x390x810

3pcs d90x400

4-93 Cº



IWF-150

450x390x940

3pcs d90x500

4-93 Cº



IWF-200

520x440x1035

4pcs d90x500

4-93 Cº




Preturile sunt in $ fara TVA .

Pretul in lei va fi calculat dupa cursul valutar al BNR la data facturarii.

Transportul nu este cuprins in pret dar poate fi negociat, la fel ca si o posibila reducere a pretului,  functie de cantitatea si valoarea produselor achizitionate.
